E-STATCOM

E-STATCOM is

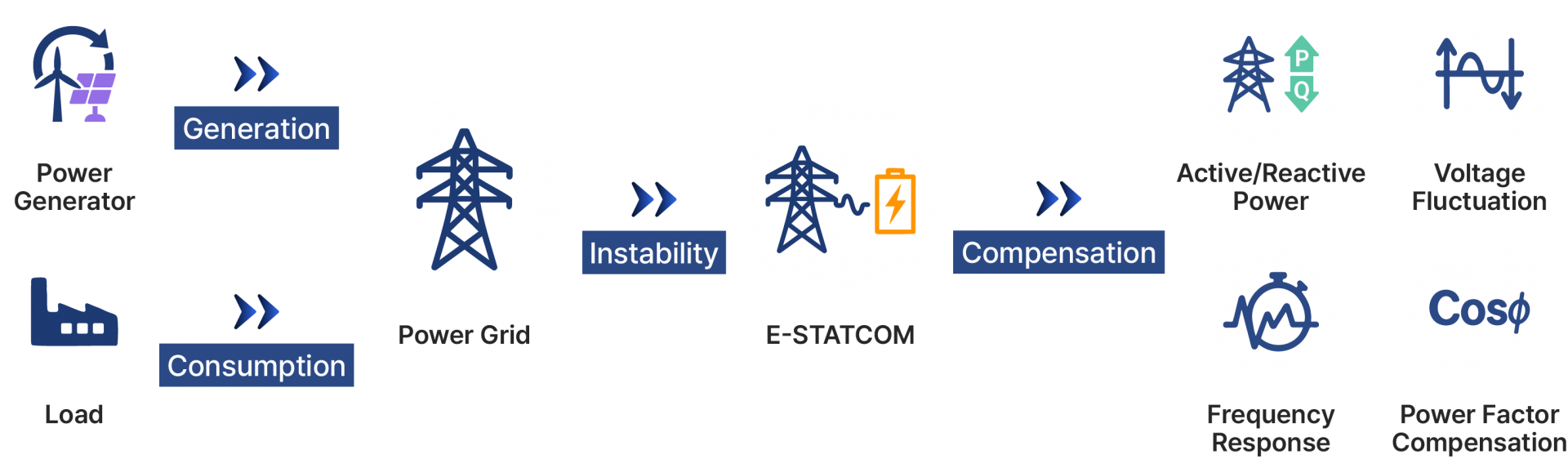

a next-generation power quality control device for grid stabilization, providing a smart solution that actively responds to renewable energy output and load fluctuations.

Based on high-speed power electronics technology, it provides reactive power compensation, voltage regulation, and frequency control, ensuring grid stability in critical demand areas such as transmission and distribution networks, industrial complexes, and data centers. As an essential facility for expanding renewable energy, it serves as a carbon-neutral infrastructure ideal for smart grid and microgrid applications.

01 Input Cabinet

Input Filter	Built-in standard filter for harmonic and electromagnetic interference suppression
Cable Connection	Top and bottom entry type; separate configurations for power, control, and grounding lines
Breaker Module	Main circuit breaker and relay for system protection
Grounding Device	Includes grounding switch and interlock integrated with the control system
Interlock System	Door interlock and key-linked system for access control
Control Terminal Block	Modular terminal block design for easy maintenance
Protection Rating	IP42, front door fully openable structure

02 Power Conversion Cabinet

Inverter	3-Level Voltage Source Inverter (HV-IGBT based)
HMI	Door-integrated; supports both remote and local control
Communication System	Ethernet and optical communication network support
Power Module	4.5kV HV-IGBT with fiber optic control cables
Power Management Module	Independent control system based on optical communication
Grounding Device	Includes control system and interlock integration functions
Pre-Charge Module	Pre-charging function before power-on
Emergency Stop Switch	Built-in emergency stop button on front door
Protection Rating	IP42, front door fully openable structure

03 Power Control Cabinet

Control System	Automatic operation based on high-performance CPU and PLC
HMI	Door-integrated; supports both remote and local control
Communication System	Ethernet and optical communication network support
Protection Features	Insulation monitoring system, integrated with UPS
Cooling System	Low-noise, high-efficiency fan with filter
Grounding Device	Safety grounding circuit with interlock integration
Power Specification	AC 220V or DC 24V
Protection Rating	IP42, front door fully openable structure

04 Battery Cabinet

Battery Module	Rack-based modular design using high-energy-density lithium-ion cells
BMS	Includes voltage, current, and temperature monitoring with protection functions
Operating Voltage	Compatible with high-voltage DC systems
Communication System	Supports real-time communication via Ethernet, CAN, and Modbus
Power Management Module	Independent control system based on optical communication
Grounding Device	Includes interlock-integrated control system connection
Protection Rating	IP42, front door fully openable structure

05 E-STATCOM UI

Main Features

Real-time power monitoring (voltage, frequency, reactive power, etc.)
Display of grid connection status and operation modes
System operation log and event history management
Visualization of voltage regulation and reactive power compensation status
Real-time monitoring of key components such as IGBT temperature
Remote operation control (output control, start/stop, etc.)
Control parameter adjustment and report generation

Platform

Web-based / Local Server

Connection

Ethernet / VPN / Cloud Integration

Features

Real-grid-integrated dashboard, power quality anomaly alerts and visualization, multi E-STATCOM linkage and integrated monitoring support

E-STATCOM is
a next-generation power quality control device for grid stabilization, providing a smart solution that actively responds to renewable energy output and load fluctuations.

Based on high-speed power electronics technology, it provides reactive power compensation, voltage regulation, and frequency control, ensuring grid stability in critical demand areas such as transmission and distribution networks, industrial complexes, and data centers. As an essential facility for expanding renewable energy, it serves as a carbon-neutral infrastructure ideal for smart grid and microgrid applications.

01

Input Cabinet

Input Filter	Built-in standard filter for harmonic and electromagnetic interference suppression
Cable Connection	Top and bottom entry type; separate configurations for power, control, and grounding lines
Breaker Module	Main circuit breaker and relay for system protection
Grounding Device	Includes grounding switch and interlock integrated with the control system
Interlock System	Door interlock and key-linked system for access control
Control Terminal Block	Modular terminal block design for easy maintenance
Protection Rating	IP42, front door fully openable structure

03

Power Control Cabinet

Control System	Automatic operation based on high-performance CPU and PLC
HMI	Door-integrated; supports both remote and local control
Communication System	Ethernet and optical communication network support
Protection Features	Insulation monitoring system, integrated with UPS
Cooling System	Low-noise, high-efficiency fan with filter
Grounding Device	Safety grounding circuit with interlock integration
Power Specification	AC 220 V or DC 24 V
Protection Rating	IP42, front door fully openable structure

04

Battery Cabinet

Battery Module	Rack-based modular design using high-energy-density lithium-ion cells
BMS	Includes voltage, current, and temperature monitoring with protection functions
Operating Voltage	Compatible with high-voltage DC systems
Communication System	Supports real-time communication via Ethernet, CAN, and Modbus
Power Management Module	Independent control system based on optical communication
Grounding Device	Includes interlock-integrated control system connection
Protection Rating	IP42, front door fully openable structure

05

E-STATCOM UI

Main Features Real-time power monitoring (voltage, frequency, reactive power, etc.) Display of grid connection status and operation modes System operation log and event history management Visualization of voltage regulation and reactive power compensation status Real-time monitoring of key components such as IGBT temperature Remote operation control (output control, start/stop, etc.) Control parameter adjustment and report generation	Platform Web-based / Local Server
	Connection Ethernet / VPN / Cloud Integration
	Features Real-grid-integrated dashboard, power quality anomaly alerts and visualization, multi E-STATCOM linkage and integrated monitoring support
